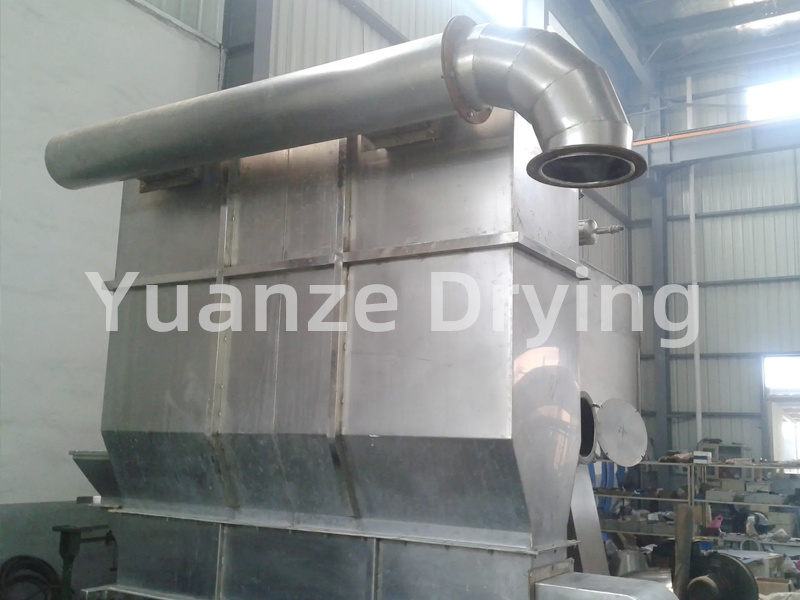

XF series boiling dryer
XF series boiling dryer
Description
The granular solid material is added to the fluidized bed dryer by a feeder, and the filtered clean air is heated and sent to the bottom of the fluidized bed by a blower, where it contacts the solid material through a distribution plate, forming fluidization and achieving heat and mass exchange between gas and solid. After the material is dried, it is discharged from the discharge port, and the exhaust gas is discharged from the top of the boiling bed. The solid powder is recovered by the cyclone dust collector group and bag filter, and then discharged.
Steam, electricity, and hot air stoves can all be matched according to user requirements.
It is suitable for drying granular materials, such as raw materials in pharmaceuticals, tablet granules, traditional Chinese medicine granules, plastic resins in chemical raw materials, citric acid, and other powdered and granular materials. It is also used for drying food and beverage granules, grain processing, corn germ, feed, etc. The particle size of the material can reach up to 6mm, preferably 0.5-3mm.
The fluidized bed dryer can implement automated production and is a continuous drying equipment. Fast drying speed, low temperature, can ensure product quality, meet GMP requirements for drug production, and can be used with steam, electric, and hot air stoves.
| Parameter | XF0.25-1 (XF10) | XF0.25-2 (XF20) | XF0.25-3 (XF30) | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Bed area (m2) | 0.25 | 0.5 | 1.0 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 1.6 | 2.4 |
| drying capacity (kg h2O/h) | 10-15 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84 |
| Fan power (kW) | 5.5 | 7.5 | 15 | 22 | 7.5 | 18.5 | 30 | 37 | 48 | 30 | 37 |
| Air inlet temperature (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| The overall size of the host is long × wide × Height (m) | 1×0.6 | 2×0.6 | 4×0.6 | 6×0.6 | 2×0.70 | 4×0.7 | 6×0.7 | 8×0.7 | 10×0.7 | 4×1 | 6×1 |
| Floor area (m2) | 18×3.35 | 25×3.35 | 35×3.35 | 40×3.35 | 25×3.4 | 38×3.4 | 45×3.4 | 56×3.4 | 70×3.4 | 18×3.58 | 56×3.58 |
| Parameter | XF0.4-8 | XF0.4-10 | XF0.4-12 | XF0.5-4 (XF50) | XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Bed area (m2) | 3.2 | 4.0 | 4.8 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
| drying capacity (kg h2O/h) | 112-160 | 140-200 | 168-240 | 70-100 | 140-200 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Fan power (kW) | 44 | 66 | 66 | 30 | 66 | 66 | 90 | 90 | 150 | 150 | 165 |
| Air inlet temperature (oC) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Material temperature (oC) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| The overall size of the host is long × wide × Height (m) | 8×1 | 10×1 | 12×1.2 | 4×1.2 | 8×1.2 | 8×1.2 | 10×1.2 | 12×1.2 | 14×1.2 | 16×1.2 | 18×1.2 |
| Floor area (m2) | 74×3.58 | 82×3.58 | 96×4.1 | 50×4.1 | 70×4.1 | 82×4.1 | 100×4.1 | 140×4.1 | 180×4.1 | 225×4.1 | 268×4.1 |
Note:
1、 Feeding method: 1. Star shaped feeding; 2. Combining star shaped feeding and pneumatic conveying; 3. Belt conveyor; 4. User defined.
2、 Can achieve automated production.
3、 In addition to the above models, special designs can be made for users.
4、 The power of the fan varies depending on the material used.
